Morgan Lakes Building C

Morgan Lakes Building C is located in Savannah, Georgia in one of it's fastest developing areas. Morgan Lakes Industrial Boulevard is just minutes away from the Garden City and Ocean Terminals, as well as the Savannah airport. This facility features a 998,634 sf of 6" slab on grade. The warehouse is made up of 192 panels totaling 221,889 sf. Panels range in thicknesses from 9.25" to 11.25" thick with 4000 psi concrete. There is also 537,846 sf of concrete paving at the facility.

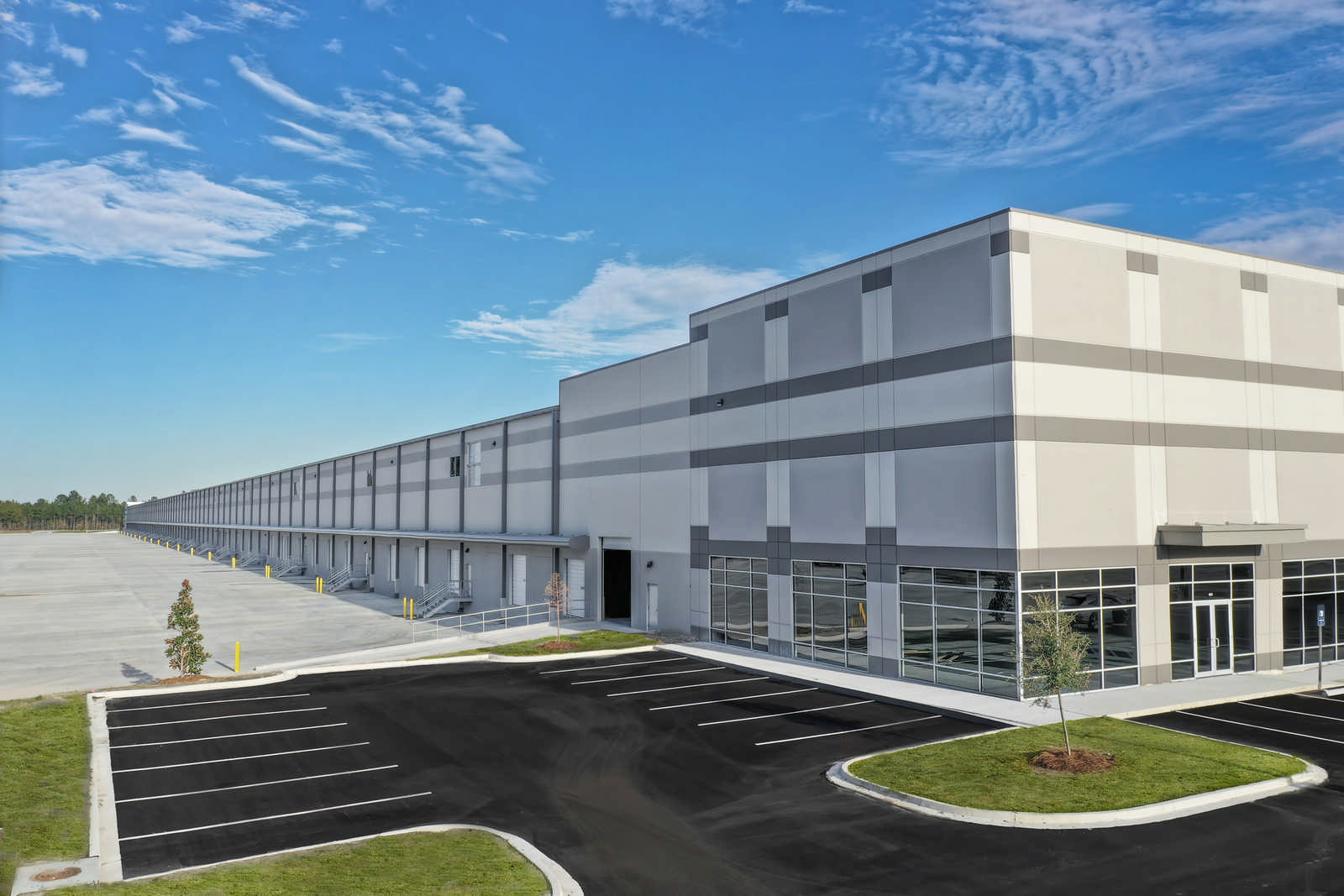

Main banner image for Morgan Lakes Building C

Project Location

Savannah, GA
United States

Project Images

TILT-UP TODAY MAGAZINE / PROJECTS IN THE NEWS

Project Team (TCA Members)

General Contractor:

Concrete Contractor:
Martin Concrete Construction Inc
Architect:

Engineer:

Suppliers:
Martin Concrete Construction Inc
Photographer(s):
Evans General Contractors

Project Specifics

Project Category:
Distribution
Building Types:
Distribution Center
Warehouse
Finishes:
Paint (Textured)
Features:
Formliner
Insulation:
Environmental:
Number of Floors:
2
Number of Panels:
192 panels
Tilt-Up Wall Area:
221,889 sq ft (20,613 sq m)
Total Floor Area:
998,634 sq ft (92,773 sq m)
Project Footprint:
998,634 sq ft (92,773 sq m)
Tallest Panel:
46 ft 11 in (14.30 m)
Widest Panel:
26 ft 8 in (8.13 m)
Heaviest Panel:
148,133 lbs (67,192 kg)
