24 Hour Fitness

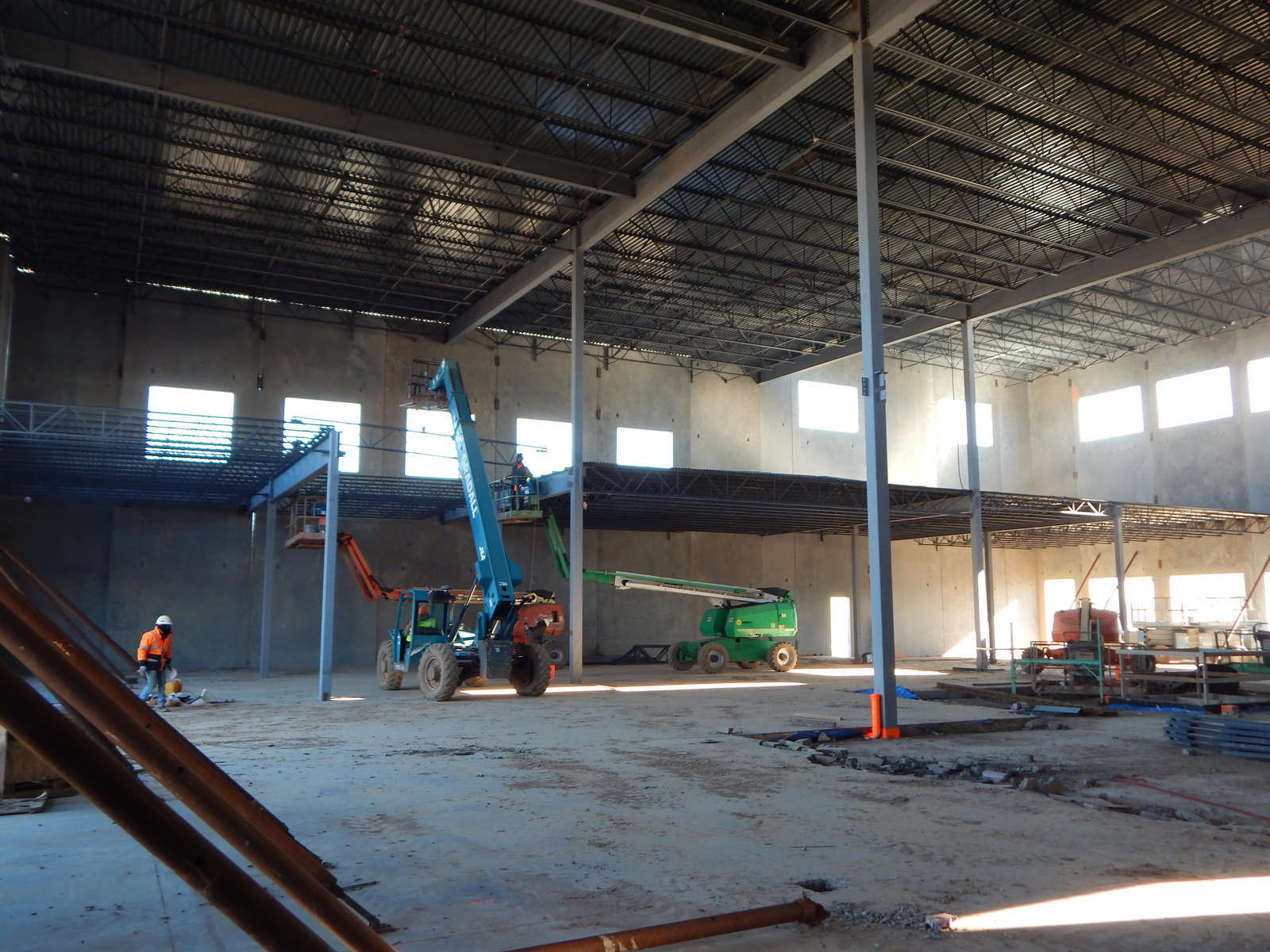

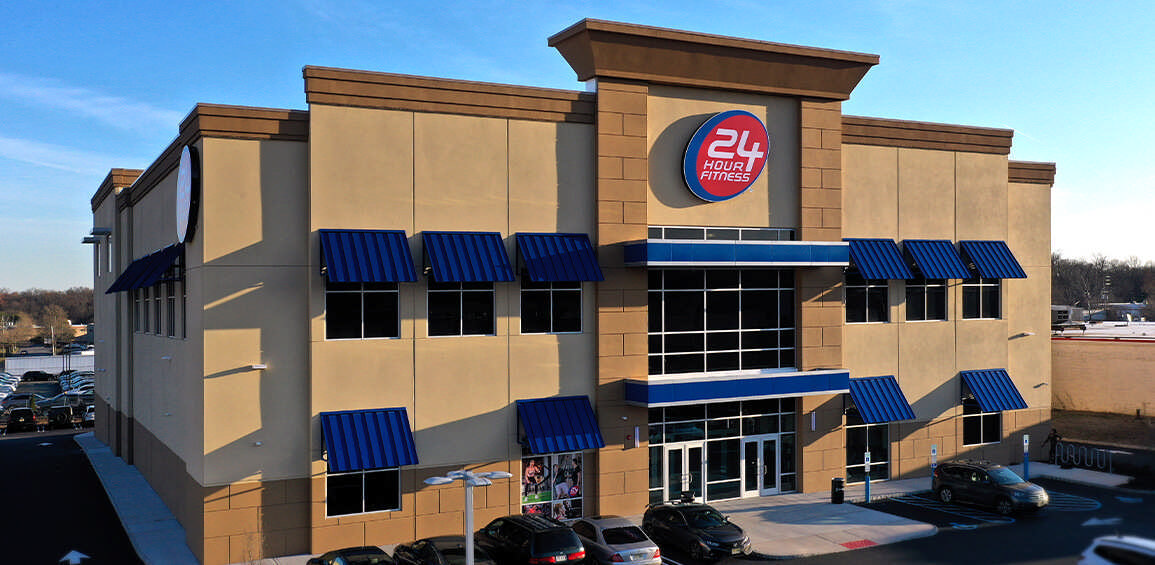

This two-story, 39,200-square-foot commercial building is constructed of tilt-up concrete wall panels and has projecting EIFS cornice and canopy. Exterior walls feature tilt-up concrete composite insulated panels. The floor structure is concrete on deck over structural steel beam and open web steel joist framing and the roof consists of roof deck on open web steel joists. Tall floor-to-floor heights accommodate sports courts and other athletic activities. Roof heights vary, with the uppermost roof located above a basketball court on the second floor. The second level includes workout space. A lower-level indoor pool required unique detailing of foundations and wall panel tie-ins at the slab on grade and presented construction challenges for the temporary bracing of the wall panels.
Main banner image for 24 Hour Fitness

Project Location

Springfield, NJ
United States

Project Images

TILT-UP TODAY MAGAZINE / PROJECTS IN THE NEWS

Project Team (TCA Members)

General Contractor:

Concrete Contractor:

Architect:

Engineer:
LJB Inc.
Suppliers:

Photographer(s):
Jim White

Project Specifics

Project Category:
Sports / Recreation
Building Types:
Gymnasium
Finishes:
Exterior insulation and finish system (EIFS)
Paint (Textured)
Features:
Reveals
Insulation:
Sandwich Panel (Composite)
Environmental:
Number of Floors:
2
Number of Panels:
46 panels
Tilt-Up Wall Area:
25,046 sq ft (2,327 sq m)
Total Floor Area:
39,200 sq ft (3,642 sq m)
Project Footprint:
19,600 sq ft (1,821 sq m)
Tallest Panel:
58 ft 4 in (17.78 m)
Largest Panel:
308 sq ft (28.6 sq m)
Heaviest Panel:
57,000 lbs (25,855 kg)
