Sawgrass Place North

With architect Nagy Architecture LLC, the Sawgrass Place North Warehouse is specifically designed to accommodate manufacturing. Hundreds of goods are manufactured daily for the market. This sparkling new facility, a 132,200 square foot one story modern warehouse is a welcomed addition in South Florida and provides a lot of work opportunities in different areas with easy access to the Sawgrass Expressway for commerce. The Tilt-Up method of construction was the best approach for this Owner and design team in that the architectural flexibility and time savings of construction heavily favored the Tilt-Up system. Probably the biggest challenge on this project was installing the foundations, due to an exorbitant amount of rain water on a site that did percolate very well. Once the foundation was installed, the balance of the construction went much smoother! The building’s architecture includes several different height panels, many different cast in reveal profiles, form-liner, and cast in place entrance canopies on differing radiuses. The facade profile is further complimented by varying steps in and out on the footprint that provides more modern architectural dimensioning. Due to the site constraints to fit two buildings, the designers created a “Saw tooth” concept at the rear of the buildings that provides for adequate and efficient load, unload and truck traffic flow in limited space.
Main banner image for Sawgrass Place North

Project Location

Coral Springs, FL 33065
United States

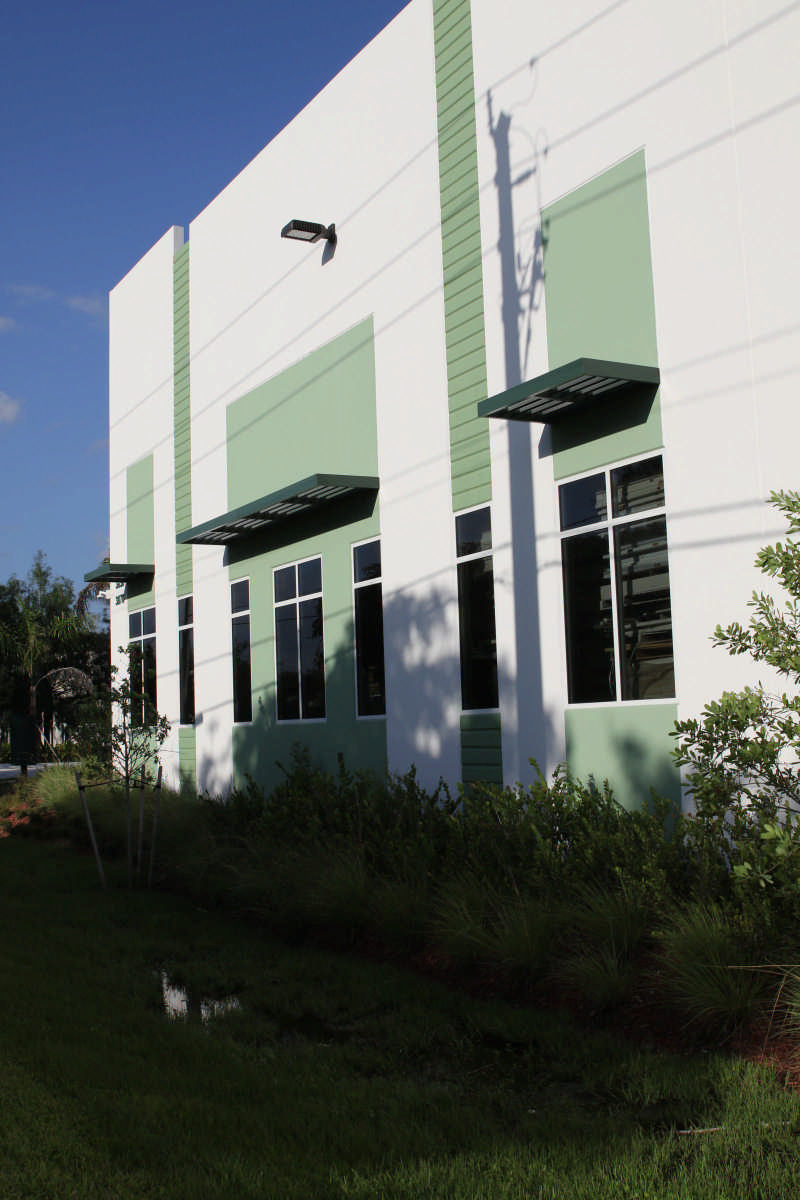

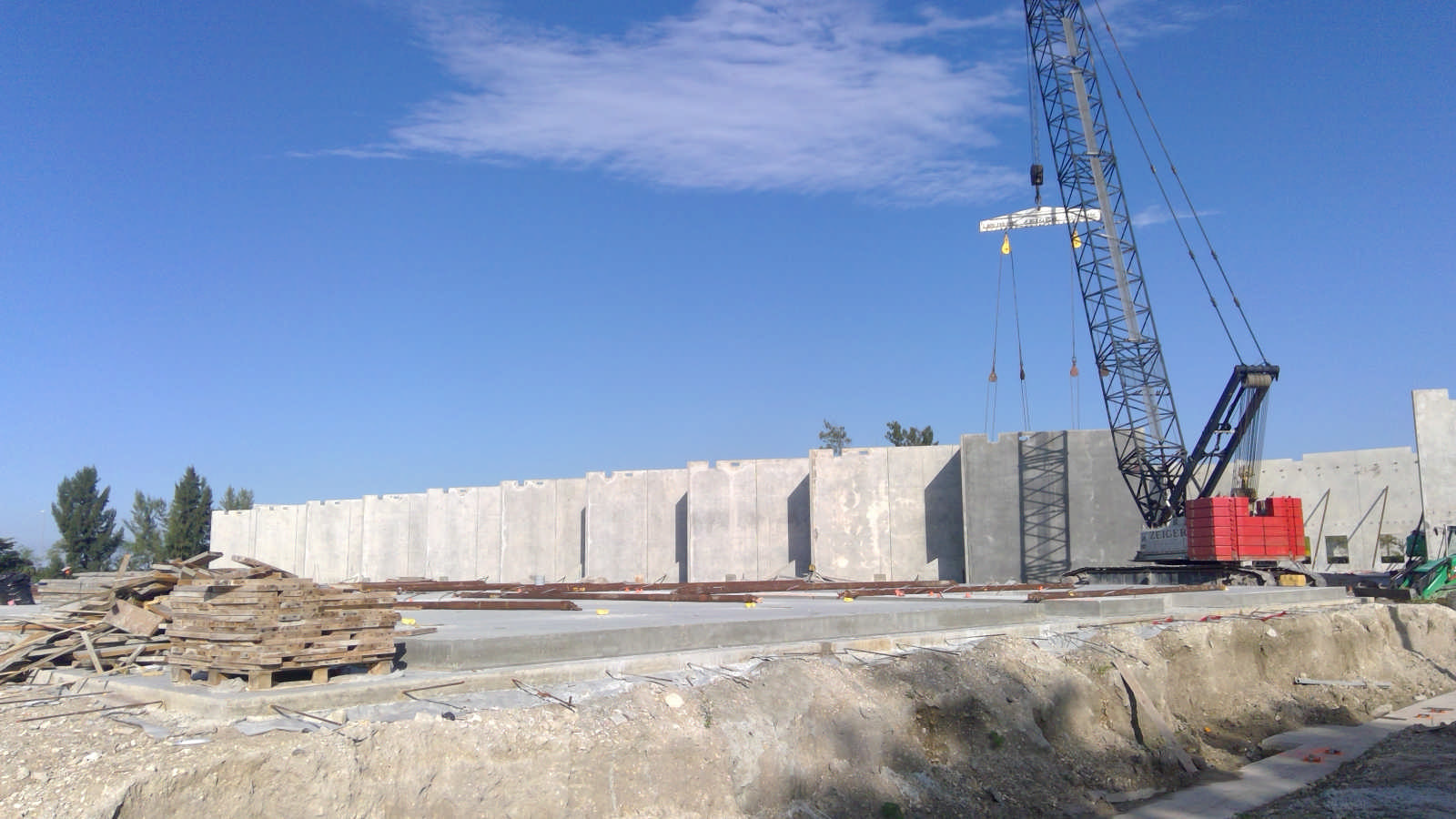

Project Images

TILT-UP TODAY MAGAZINE / PROJECTS IN THE NEWS

Project Team (TCA Members)

General Contractor:
ANF Group
Concrete Contractor:
Woodland Tilt-Up
Architect:

Engineer:

Suppliers:

Photographer(s):

Project Specifics

Project Category:
Distribution
Building Types:
Manufacturing Plant
Finishes:
Paint (Flat)
Features:
Cantilevered Panels
Formliner
Interlocking Panels
Reveals
Shadow Panels
Insulation:
Uninsulated
Environmental:
Number of Floors:
2
Tilt-Up Wall Area:
146,000 sq ft (13,563 sq m)
Total Floor Area:
132,200 sq ft (12,281 sq m)
Project Footprint:
112,000 sq ft (10,405 sq m)
Tallest Panel:
38 ft 0 in (11.58 m)
Widest Panel:
30 ft 0 in (9.14 m)
Largest Panel:
1,065 sq ft (98.9 sq m)
Heaviest Panel:
115,000 lbs (52,163 kg)
Tallest Cantilever:
6 ft 0 in (1.83 m)
Longest Spandrel:
21 ft 0 in (6.40 m)
Recycled Content:
110 tons (US)
