Shooters World Orlando
Project summary provided by submitting company.

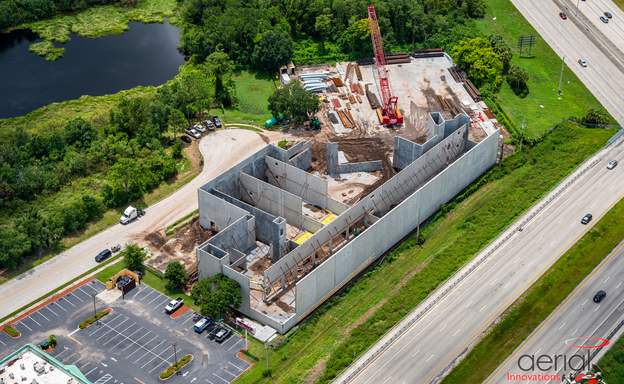

The 80,000 Square foot 2-Story Shooters World Gun Range features tilt-up construction for all exterior and interior walls. The Ranges exposed to the building's exterior were cast as insulated sandwich panels to act as a sound barrier. Interior vertical panel joints at all the gun ranges were filled to eliminate bullet ricochet. Panels were cast on temporary casting slabs and stacked due to limited space onsite.
Project Location
Orlando, FL
United States
Project Images
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Project Team (TCA Members)
- General Contractor:
- Concrete Contractor:
- Architect:
- Engineer:
- Suppliers:
- Photographer(s):
Project Specifics
- Project Category:
- Sports / Recreation
- Building Types:
- Finishes:
- Applied Ornament
- Exterior insulation and finish system (EIFS)
- Paint (Flat)
- Features:
- Cantilevered Panels
- Embedded Items
- Formliner
- Reveals
- Insulation:
- Post Applied (Interior)
- Sandwich Panel (Non-Composite)
- Environmental:
- LEED Certified
- Number of Floors:
- 2
- Number of Panels:
- 102 panels
- Tilt-Up Wall Area:
- 72,077 sq ft (6,696 sq m)
- Total Floor Area:
- 80,110 sq ft (7,442 sq m)
- Project Footprint:
- 42,438 sq ft (3,942 sq m)
- Tallest Panel:
- 53 ft 11 in (16.43 m)
- Heaviest Panel:
- 193,510 lbs (87,775 kg)
- Tallest Cantilever:
- 30 ft 0 in (9.14 m)
- Longest Spandrel:
- 53 ft 4 in (16.26 m)
