WestRock Porto Feliz
Project summary provided by submitting company.

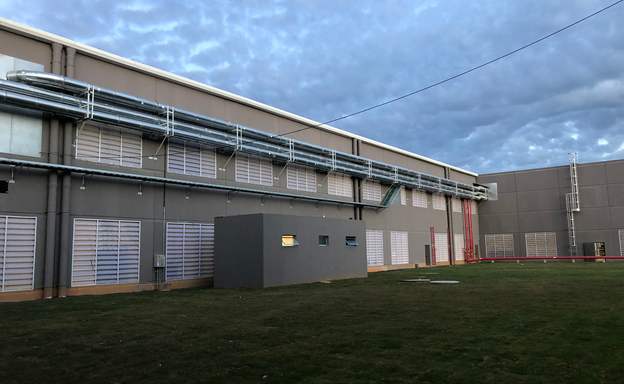

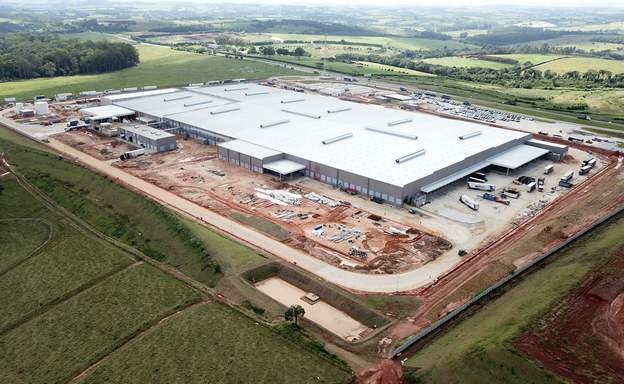

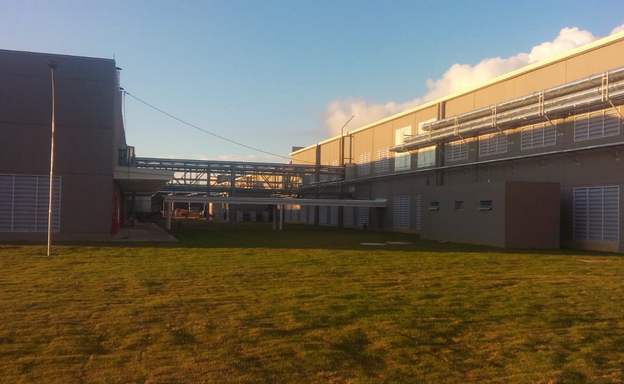

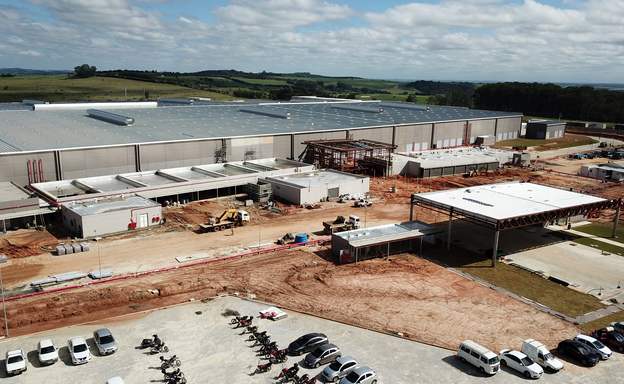

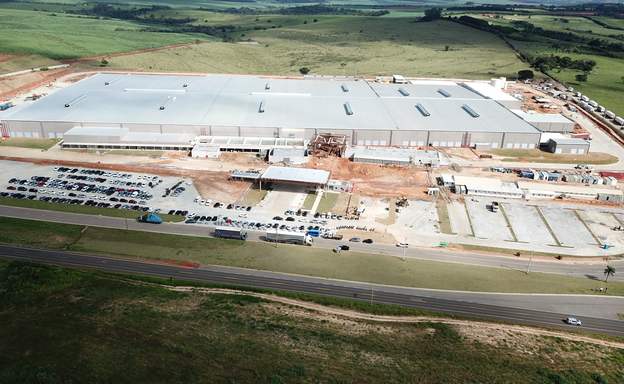

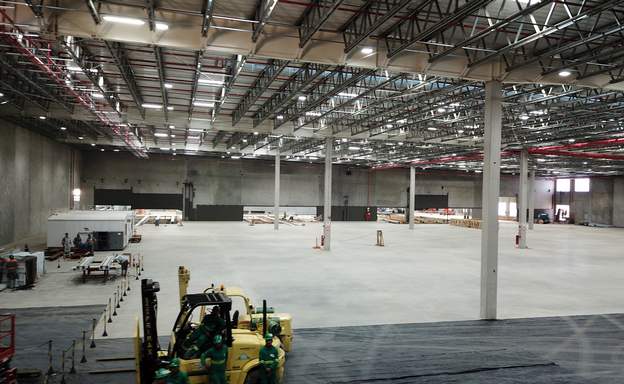

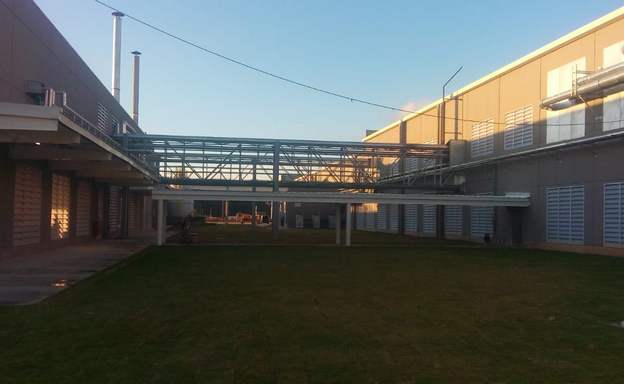

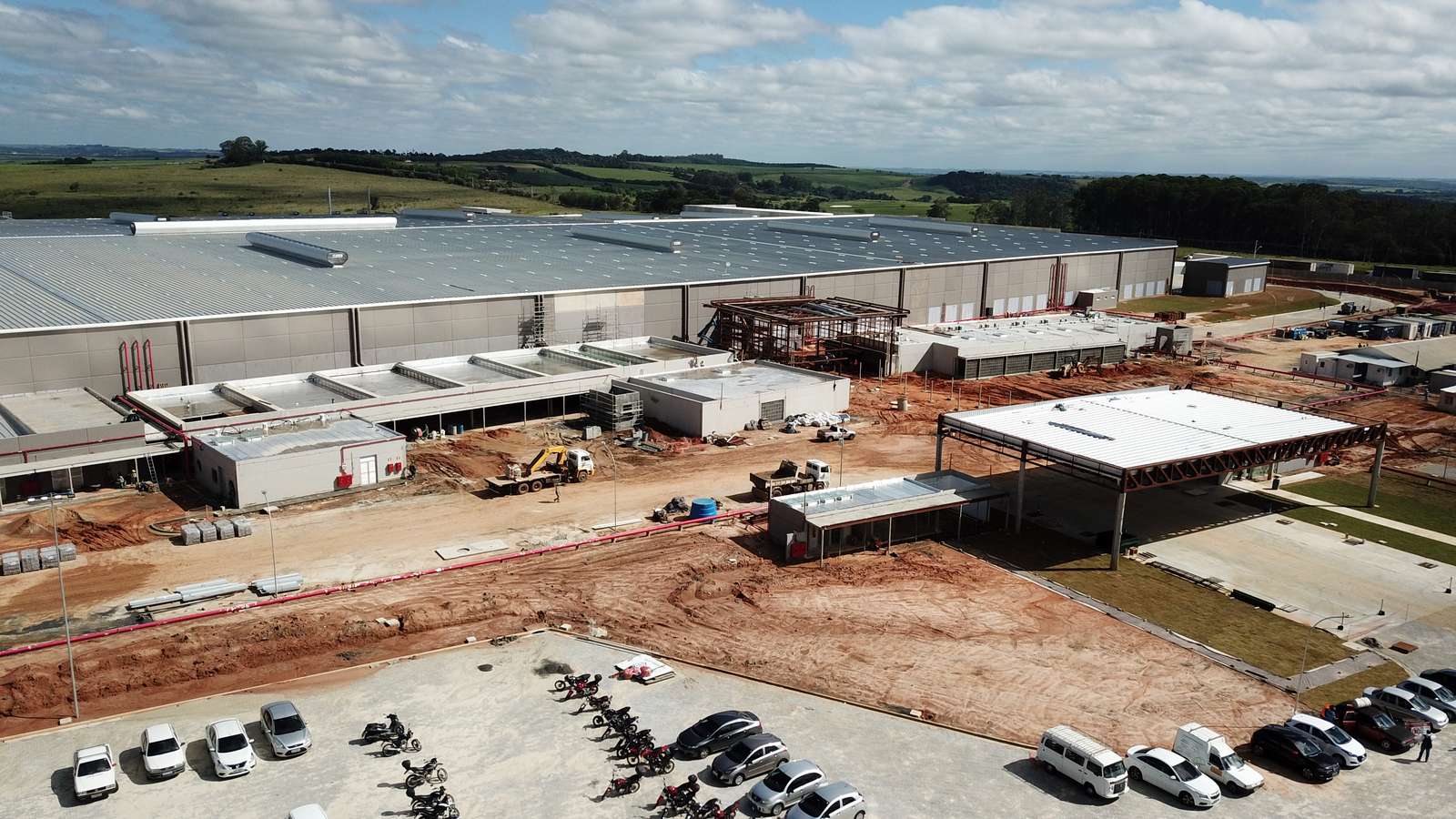

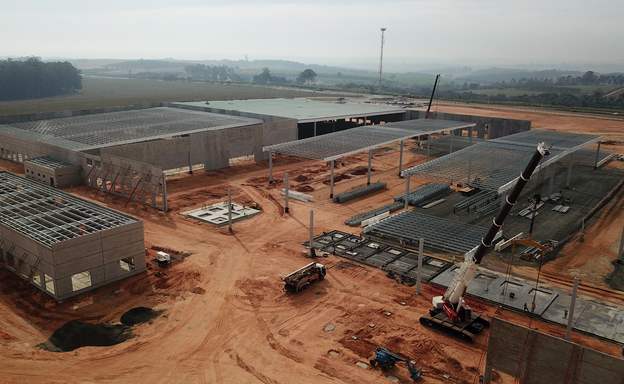

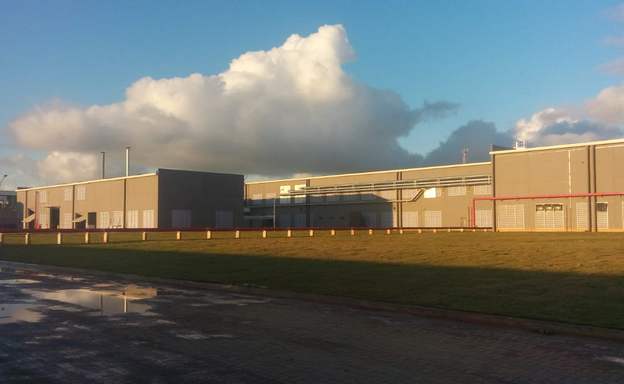

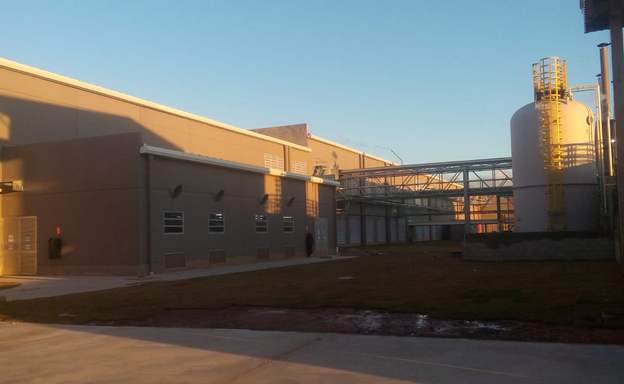

WestRock is a multinational company, manufacturer of paper and packaging solutions, being the unit of Porto Feliz – São Paulo - Brazil, one of the biggest corrugated factories in the world. The tilt-up system with the metallic structure proved to be advantageous to meet the large dimensions of the equipment and internal logistics, the factory has a modulation that ranges from 25.00 x 20.00m to 25.00 x 40.25m. For the warehouse of paper reels, panels were used with up to 3 panels overlapping with a spandrel of more than 15.00m of large, taking into account the need for fire insulation and allowing doors with large spans to pass through the products. The panels were also used to support pipes and installations, optimizing additional structures such as pipe-rack. Externally the finish is with textured paint, but internally the apparent concrete panel has satisfied aesthetically, without needing any painting.
Project Location
Porto Feliz, Sao Paulo
Brazil
Project Images
1
2
3
4
5
6
7
8
9
10
11
Project Team (TCA Members)
- Developer/Owner:
- General Contractor:
- Concrete Contractor:
- Architect:
- Engineer:
- Suppliers:
- Photographer(s):
Project Specifics
- Project Category:
- Production/Manufacturing
- Building Types:
- Finishes:
- Block
- Concrete (Polished)
- Concrete (Raw/Sealed)
- Paint (Flat)
- Paint (Textured)
- Features:
- Cantilevered Panels
- Interlocking Panels
- Metal Panels
- Stacked Panels
- Insulation:
- Environmental:
- Number of Floors:
- 0
- Number of Panels:
- 437 panels
- Tilt-Up Wall Area:
- 260,408 sq ft (24,192 sq m)
- Total Floor Area:
- 896 sq ft (83 sq m)
- Project Footprint:
- 885 sq ft (82 sq m)
- Tallest Panel:
- 52 ft 4 in (15.95 m)
- Heaviest Panel:
- 77,372 lbs (35,095 kg)
