Oechsler Adidas Speed Factory

Project summary provided by submitting company.

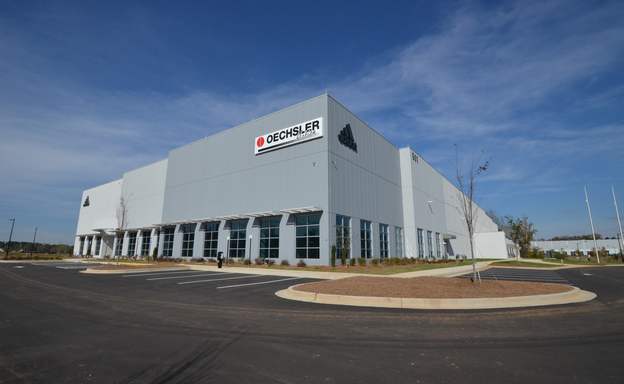

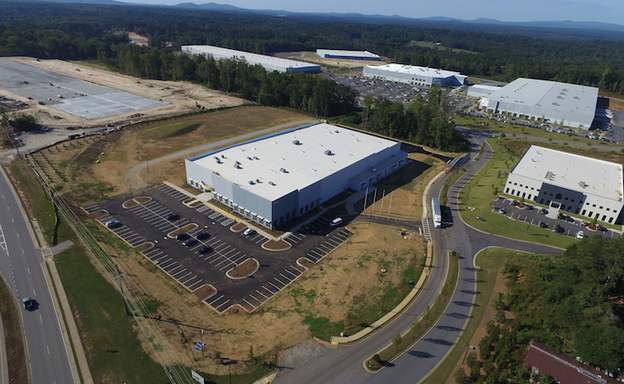

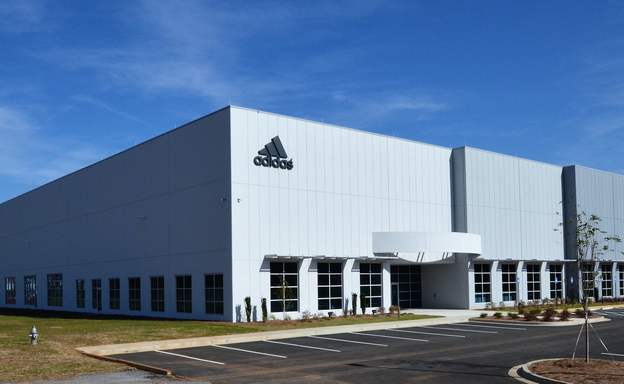

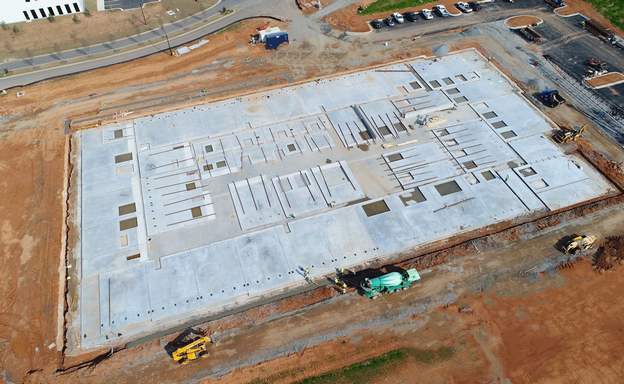

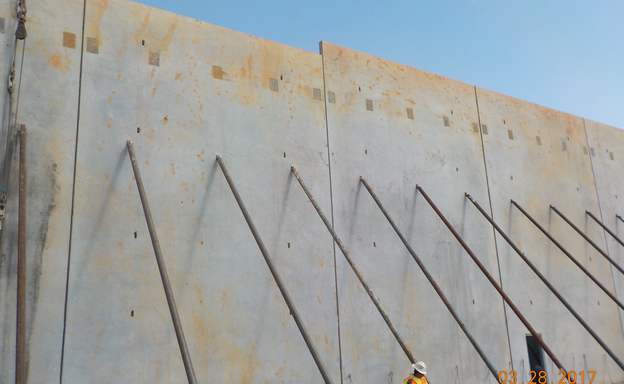

The Oechsler Speed Factory is an industry-defining, state-of-the-art, robot-powered assembly facility in Acworth, Georgia. This is the first U.S. based robotic speed factory and will produce Adidas footwear. The 75,000 sf factory consist of 17,000 sf of high end office space and 58,000 sf of production and warehouse space. A total of 55 tilt wall panels were cast upon the 10” thick slab on grade. Every inch of the slab was used to form and produce panels. Panel thicknesses ranged from 7 ¼ “ to 9 ¼ “. Although the building is on a smaller scale, the factory is set to produce 50,000 shoes annually and employ around 160 people. This development is the future of manufacturing.


Main banner image for Oechsler Adidas Speed Factory

Project Location

Acworth, GA
United States

Project Images

TILT-UP TODAY MAGAZINE / PROJECTS IN THE NEWS

Project Team (TCA Members)

General Contractor:

Concrete Contractor:

Architect:

Engineer:

Suppliers:

Photographer(s):

Project Specifics

Project Category:
Production/Manufacturing
Building Types:
Finishes:
Concrete (Polished)
Paint (Textured)
Features:
Formliner
Reveals
Insulation:
Environmental:
Number of Floors:
1
Number of Panels:
55 panels
Tilt-Up Wall Area:
47,377 sq ft (4,401 sq m)
Total Floor Area:
52,218 sq ft (4,851 sq m)
Project Footprint:
52,218 sq ft (4,851 sq m)
Tallest Panel:
42 ft 11 in (13.08 m)
Heaviest Panel:
124,600 lbs (56,518 kg)
Longest Spandrel:
26 ft 5 in (8.05 m)
